Chemical Testing

Chemical Testing

1

Spectroscopy

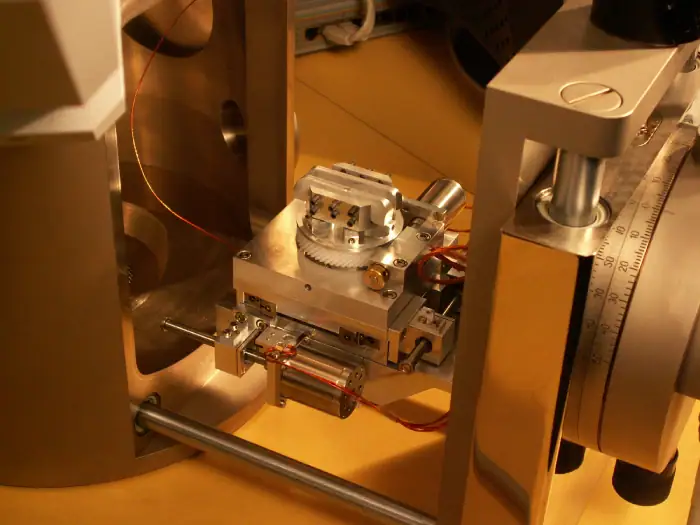

When quik results are needed, spectrographic analysis by APL Inc. is the answer. Both speed and repeatable accuracy are gained through the use of a computer-controlled, direct reading, optically emitting, accum spectrometer. The spectrometer will perform its analysis on the majority of the solid samples submitted, and is programmed to cover virtually all of the standard engineering alloys. A computer generated data file of all elements requiring ASTM standards is retained for future reference.

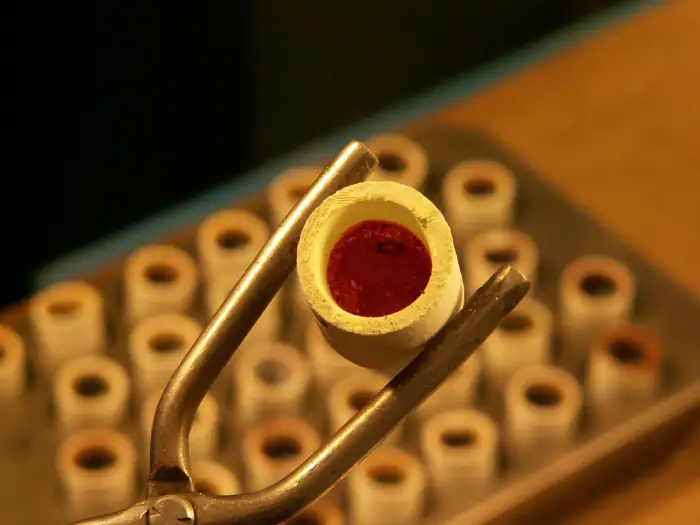

Carbon, Sulphur, Hydrogen, Nitrogen, and Oxygen Analysis

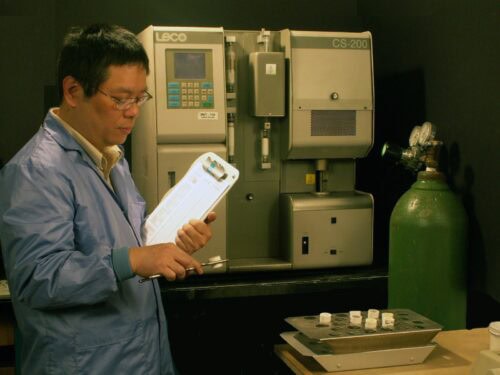

Traditional Spectrographic techniques for the determination of carbon, sulfur, nitrogen and oxygen can be inherently inaccurate. Thanks to the use of LECO analyzers, APL can determine the concentrations of these elements in a sample with an exceptionally high degree of accuracy.

2

XDF and XRF Analysis

The techniques of Energy Dispersive Spectroscopy (EDS) applied in conjunction with a scanning electron microscope (SEM) are used in determining data on a range of valuable parameters:

  • Mode and origin of failures
  • Corrosive element determination
  • Microscopic chemistry
  • Microscopic defect
  • Surface analysis
  • Particle analysis
Corrosion products, inclusions and other very small but important constituents of castings and forgings are identified through use of the SEM/EDS combination. Stag and other various Ferro-Alloys can be analyzed using our XRF analyzer. This instrument provides us with a high degree of accuracy and precision when determining these materials - something that a spectrometer cannot do. When it comes to analyzing unknown materials, the XRF can provide us with semi-quantitative results which leads us and the customer in the right direction for identification and replication.
